6th grade making dot plots worksheets

Tap to see another sample sheet. The picture follows the difficulty you pick.

Making dot plots worksheets for 6th grade hand your child a short list of measurements and an empty number line, four times per sheet. Place one dot for every value and stack the dots when a value repeats. Plot 2, 3, 3, 5 and you get one dot at 2, two at 3 and one at 5. An easier version is offered as well.

Free printable PDF worksheet, aligned to Common Core 6.SP.B.4.

Each print is a different sheet with its own answer key. You don't need to sign up.

The kind of problems you'll get

Use the data to complete each line plot. Draw one dot for each measurement.

  1. Plot 2, 3, 3, 5.

    Answer: One dot at 2, two at 3 and one at 5.

Most problems on this sheet sit beside a picture, model or diagram, so this is the worked example the sheet itself prints. The answer key on page two prints the answer under every problem.

Every print pulls a fresh set of problems at this level, so a make-up test or a second sibling never gets the same sheet.

What's on each sheet

Every version prints on US Letter or A4, with its answer key after the problems.

This sheet is one of the versions on the 6th grade mean, median, mode & range page, with its own difficulty choices and its own answer key.

How to teach this

Have your child cross off each value on the list as its dot goes down. That single habit prevents the two common slips, a missed value and a doubled one. Repeats are where to watch. When 3 shows up twice, the second dot goes directly above the first, in the same column, so the stack shows the count at a glance. Dots that drift sideways turn a repeat into two different values. Before moving on, count the dots and count the list. The two numbers have to match. Then ask one reading question about the finished plot, such as which value came up most or what the smallest was. Building the plot and reading it back are the same skill from two ends, and the second half makes the first half stick.

Watch for: Kids place one dot per distinct value and skip the repeats. Every measurement gets its own dot, so 3, 3 is two dots stacked at 3, and the height of the stack is the count. Kids space the dots evenly along the line instead of over the actual numbers. A dot's position is its value. Find the number on the axis first, then put the dot right above it.

Common questions about 6th grade making dot plots

What is on the sheet?

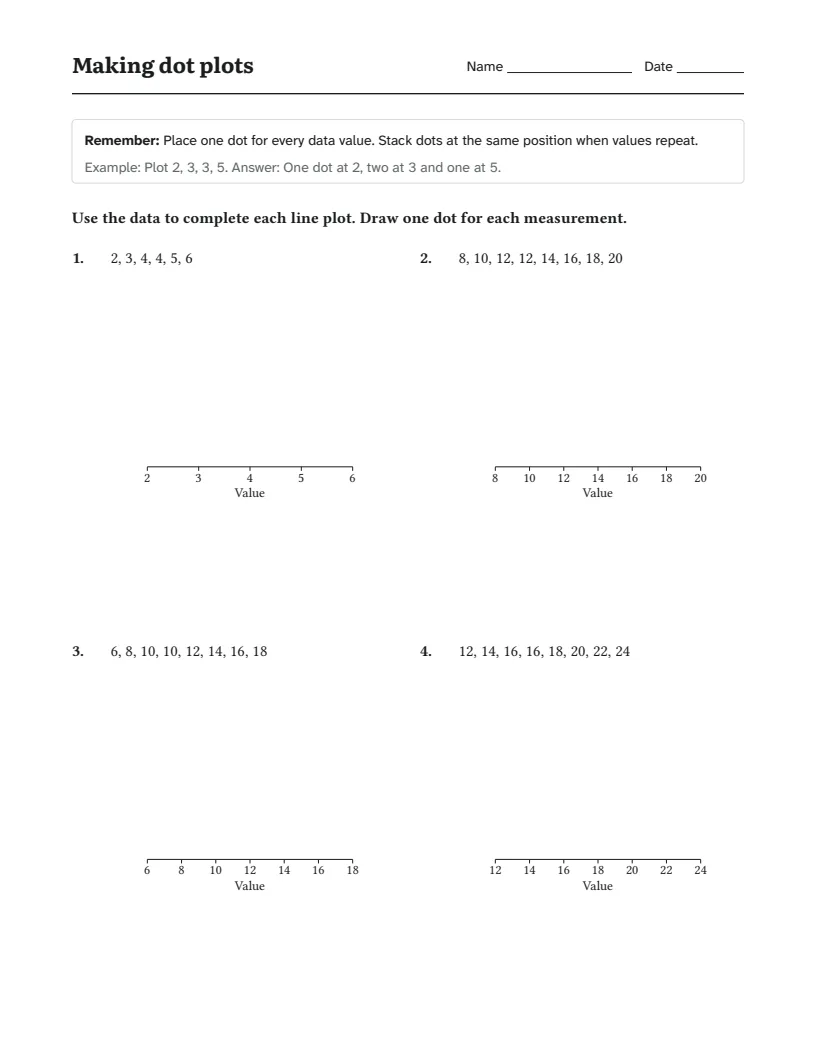

Four problems. Each gives a list of data values and an empty number line, and your child draws the dots. The sheet's Remember box states the two rules: one dot for every value, and stack the dots when values repeat. The answer key describes the finished plot, for example one dot at 2, two at 3 and one at 5.
Is a dot plot the same as a line plot?
Yes. The instruction on the sheet says line plot and this page says dot plot, and they are the same display: a number line with a dot above it for each value. Younger grades usually say line plot; 6th grade and its standard, 6.SP.B.4, say dot plot.
Are there two difficulty levels?
Yes, easier and default. Both give the same task, a list of values and an empty axis to plot them on. If dot plots are new to your child, start with easier and move up once stacking the repeats has become automatic.
