6th grade histograms worksheets

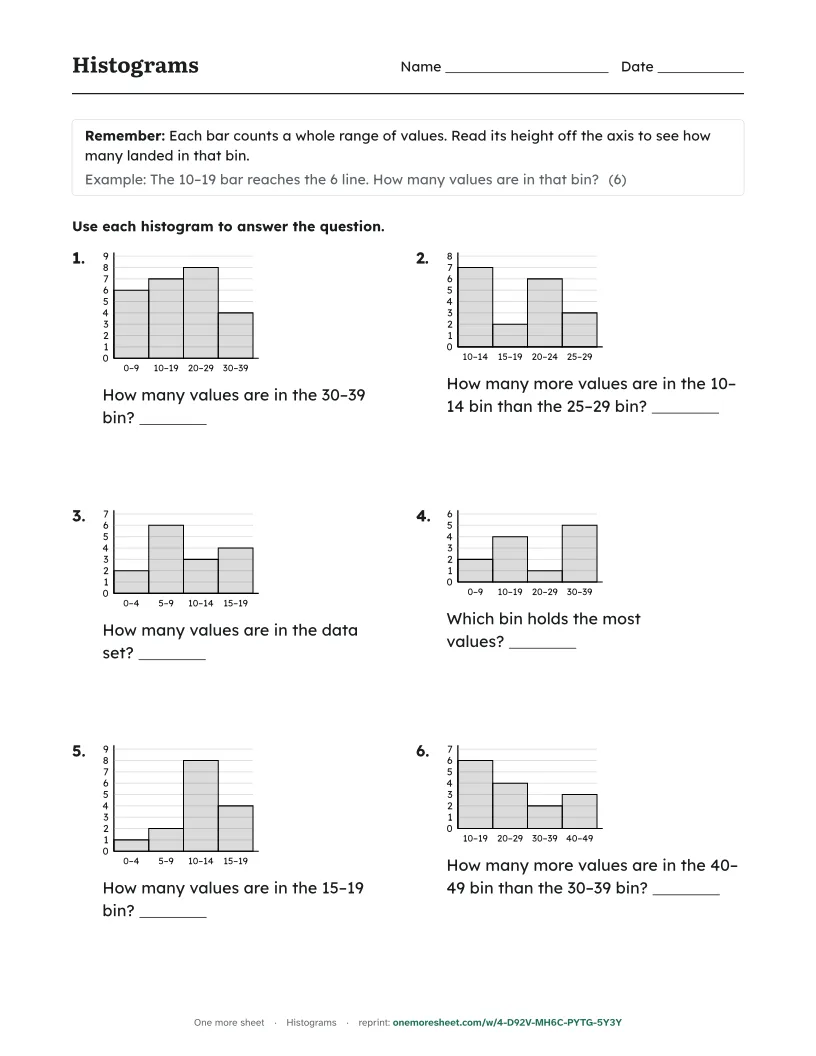

Tap to see another sample sheet.

Sixth grade histogram worksheets include reading and construction. Reading questions ask for the frequency in a supplied interval. Construction questions provide measurement data, labeled intervals, and an axis on which students draw the bars. Each bar counts a range, not a single value.

Free printable PDF worksheet, aligned to Common Core 6.SP.B.4, 6.SP.B.5.a.

Each print is a different sheet with its own answer key. You don't need to sign up.

The kind of problems you'll get

Read each histogram and answer each question. Each interval includes its left edge and excludes its right edge.

  1. Two intervals have frequencies 3 and 5. How many values are in those intervals altogether?

    Answer: 3 + 5 = 8 values.

Most problems on this sheet sit beside a picture, model or diagram, so this is the worked example the sheet itself prints. The answer key on page two prints the answer under every problem.

Every print pulls a fresh set of problems at this level, so a make-up test or a second sibling never gets the same sheet.

What's on a 6th grade sheet

The sample sheet above has 6 problems. Its answers run from 1 to 10.

Every version prints on US Letter or A4, with its answer key after the problems.

How to teach this

Start every problem at the axis: find the gridline the bar touches and say the count out loud. Then ask what the label means: the 10–19 bin holds every value from 10 through 19, and you cannot tell where inside it they fall. For totals, add all the bar heights; a quick pencil tick above each bar keeps the sum honest. When constructing a histogram, tally the values into the supplied intervals before drawing any bars.

Watch for: Kids read a histogram like a bar graph of single values. Each bar covers a whole range, and the individual values disappear into their bin. Kids answer with the tallest bar's label when the total is asked. The total means adding every bar's height, not naming the biggest bin.

Common questions about 6th grade histograms

What is on the worksheet?
Some questions provide a histogram and ask for one interval's frequency. Others provide measurement data, labeled intervals, and an axis for constructing the histogram.
How is a histogram different from a bar graph?
A bar graph counts separate categories; a histogram counts ranges of numbers, which is why the bars touch. Once a value lands in the 20–29 bin, you know its range but not the exact number.

Related worksheets

Ready to print one?

Need a fresh set of problems? Print another copy.

Aligned to Common Core 6.SP.B.4, 6.SP.B.5.a. Reviewed by the One more sheet team. Content version 241, updated September 2026.

Spot a mistake on this sheet? Tell us. · About these worksheets
