5th grade line plots with fractions worksheets
Fifth grade line plots keep the fraction ticks but put the data to work. Instead of counting Xs, questions ask for the total of all the measurements, or the difference between the longest and shortest. That means adding and subtracting fractions with unlike denominators.
Free printable PDF worksheet, aligned to Common Core 5.MD.B.2.
Each print is a different sheet with its own answer key. You don't need to sign up.
The kind of problems you'll get
Read each display and answer every question.
-
A line plot has two marks at 1/4 m and one at 1/2 m.
Answer: There are 3 measurements. Their total is 1/4 + 1/4 + 1/2 = 1 m.
Most problems on this sheet sit beside a picture, model or diagram, so this is the worked example the sheet itself prints. The answer key on page two prints the answer under every problem.
Every print pulls a fresh set of problems at this level, so a make-up test or a second sibling never gets the same sheet.
What's on a 5th grade sheet

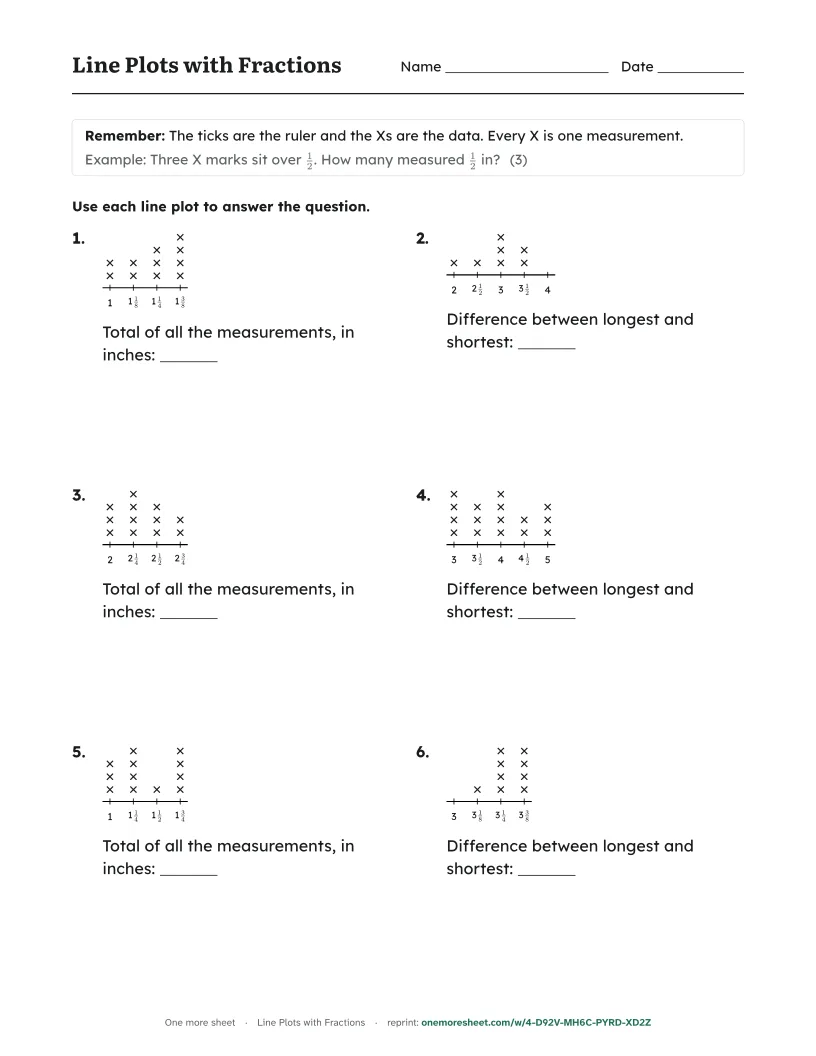

The sample sheet above has 6 problems. This sheet is aligned to 5.MD.B.2. The 4th grade sheet is aligned to 4.MD.B.4.
- Line plots with fractions. Read each display and answer every question. 6 problems per page.
Every version prints on US Letter or A4, with its answer key after the problems.
How to teach this
The plot is a fraction problem in disguise. Have your child list the data before computing: three Xs over 1/2 means 1/2 written three times, not once. For differences, find the longest and shortest values on the line first, then subtract with a common denominator. Answers carry the same unit as the labels, in inches.
Watch for: Kids count the tick marks on the line instead of the Xs stacked above them. The ticks are just the ruler; the Xs are the data. Kids add each fraction label once when totaling. A value with three Xs on it goes into the sum three times.
Common questions about 5th grade line plots with fractions
- What kinds of questions are asked?
- Totals and differences: the sum of all the measurements in inches, or the gap between the longest and shortest. Answers are fractions or mixed numbers like 12 3/8 or 3/4.
- Why do line plots show up in a fraction unit?
- Because 5.MD.B.2 uses data as a reason to add and subtract fractions with unlike denominators. The plot supplies real measurements, so the arithmetic has a purpose.
